Hohe Kapazitäten

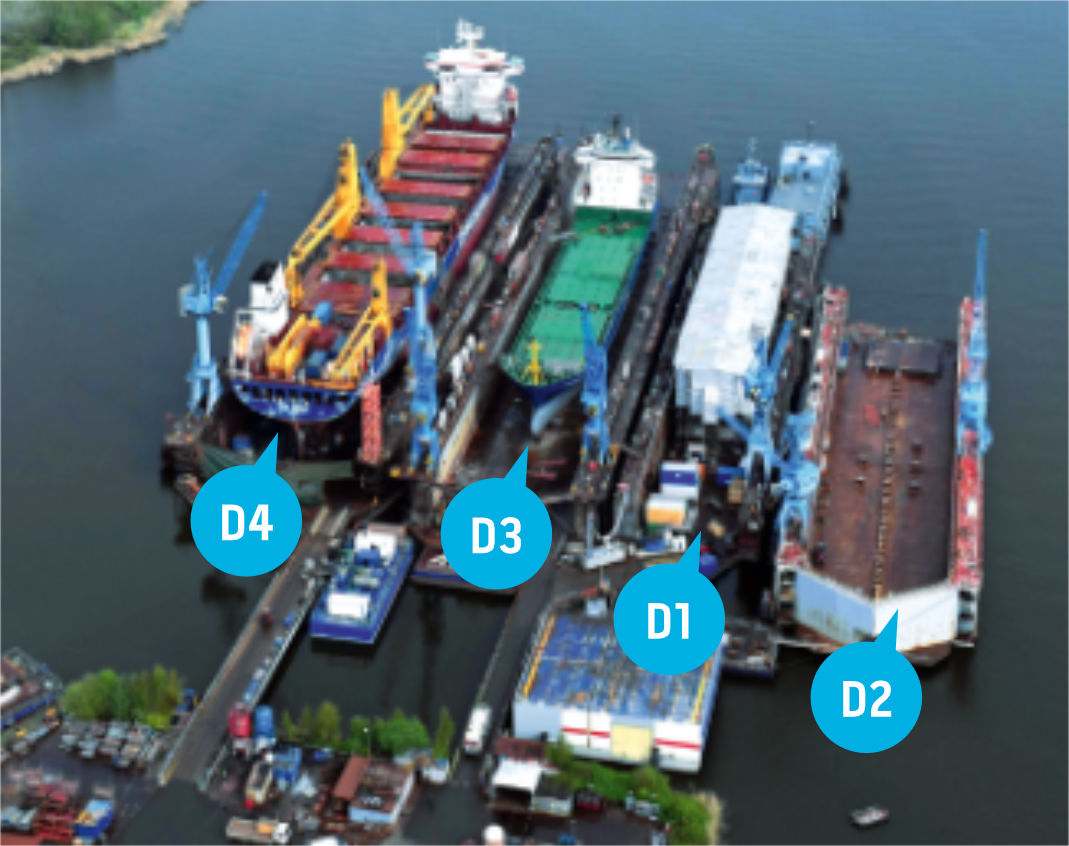

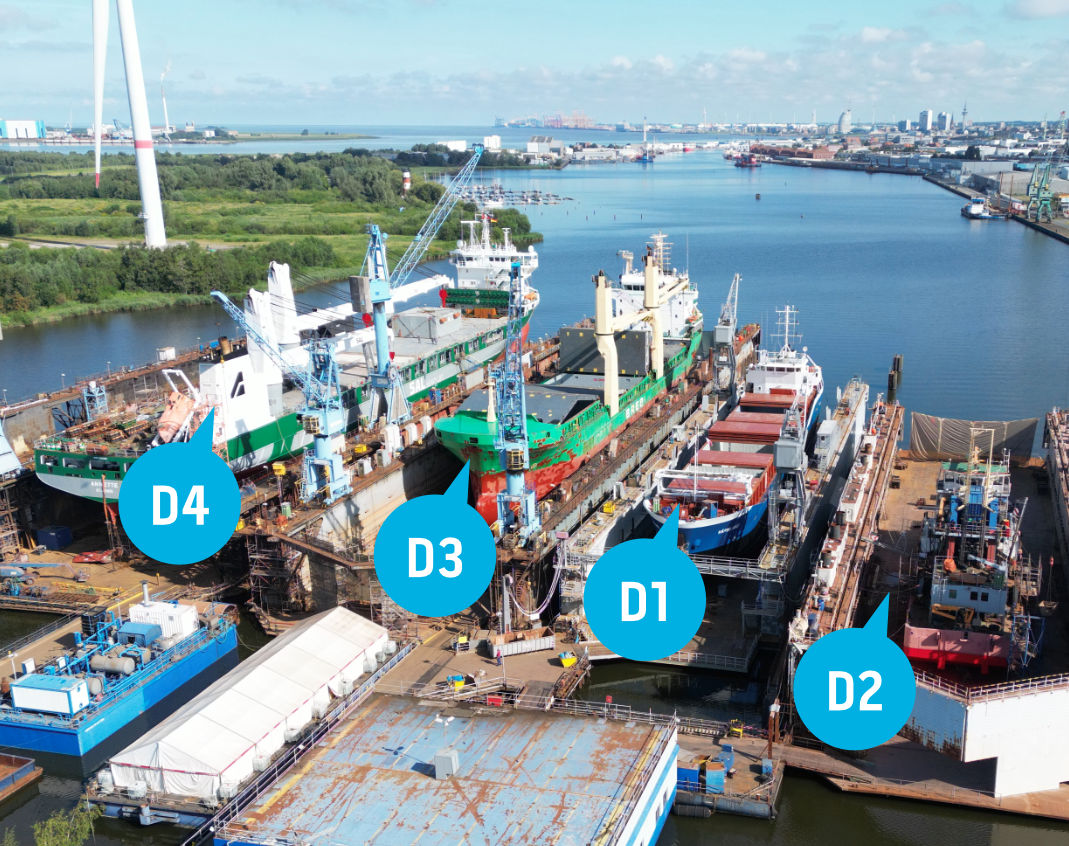

D1

Floating Dock 1 3800 t

Clear width 16.40 m

Length 116.00 m

Water depth over keel blocks 4.80 m

Crane(1) 7.50 t/12.00 m - 5.00 t/20.00 m

D2

Floating Dock 2 4500 t

Clear width 21.30 m

Length 100.00 m

Water depth over keel blocks 4.70 m

Crane(1) 4.50 t/15.00 m - 2.50 t/23.00 m

D3

Floating Dock 3 7500 t

Clear width 23.90 m

Length 158.00 m

Water depth over keel blocks 6.20 m

Crane(2) 7.50 t/12.00 m - 5.00 t/20.00 m

D4

Floating Dock 4 12,000 t

Clear width 29.00 m

Length 170.00 m

Water depth over keel blocks 6.00 m

Crane(2) 10.00 t/10.00 m - 5.00 t/30.00 m

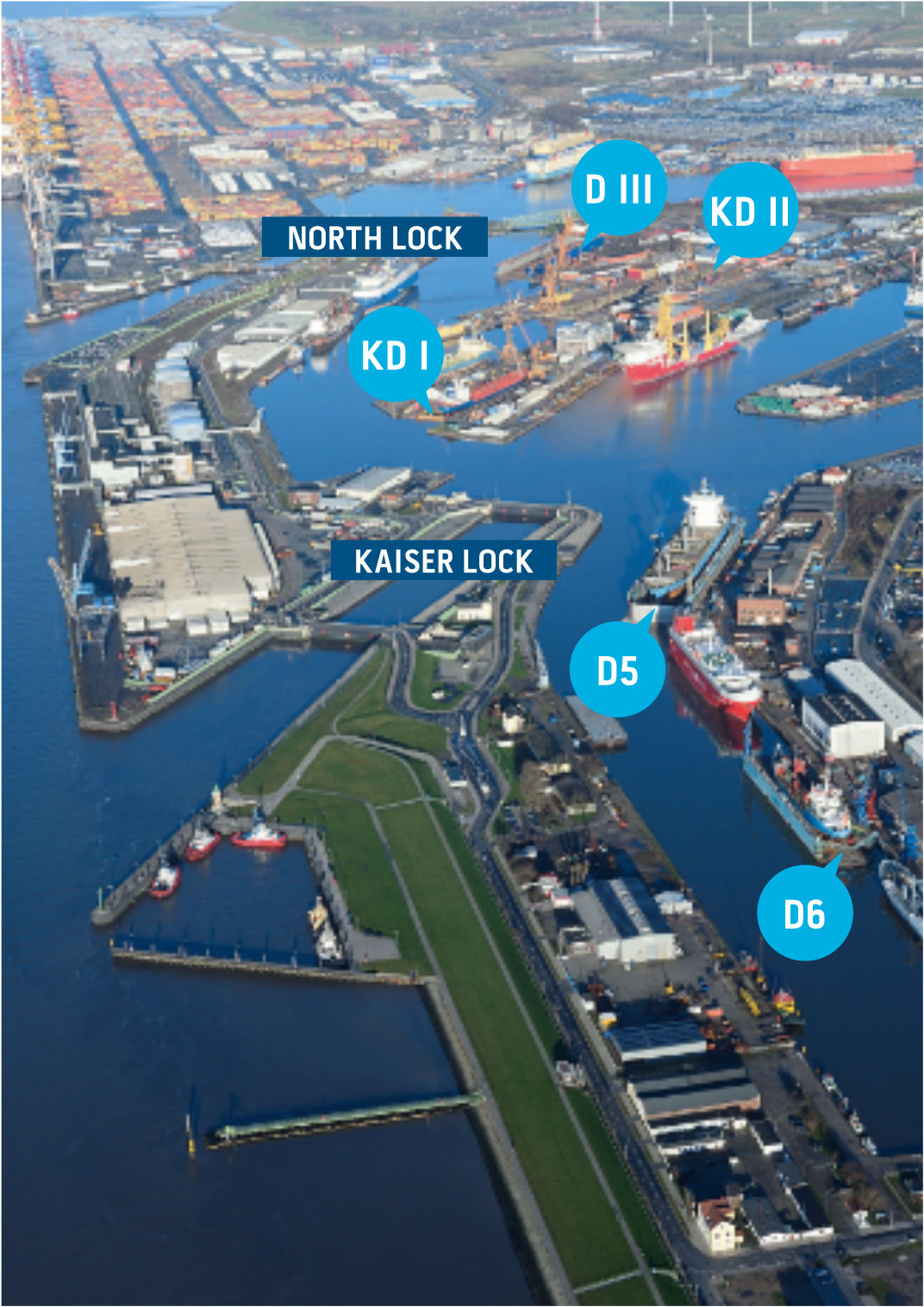

D5

Floating Dock 5 20,000 t

Clear width 35.00 m

Length 215.00 m

Water depth over keel blocks 6.20 m

Crane(2) 25.00 t/30.00 m

D6

Floating Dock 6 7200 t

Clear width 21.00 m

Length 147.00 m

Water depth over keel blocks 6.50 m

Crane 10.00 t

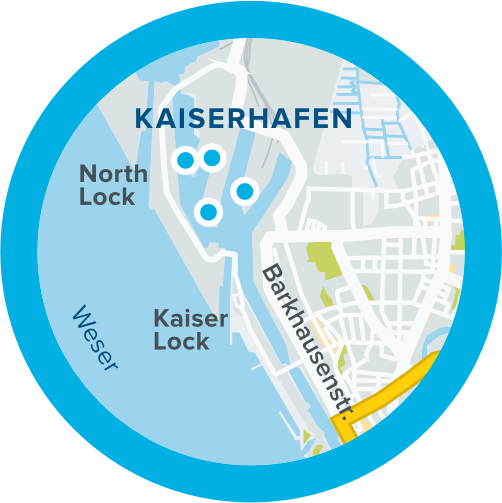

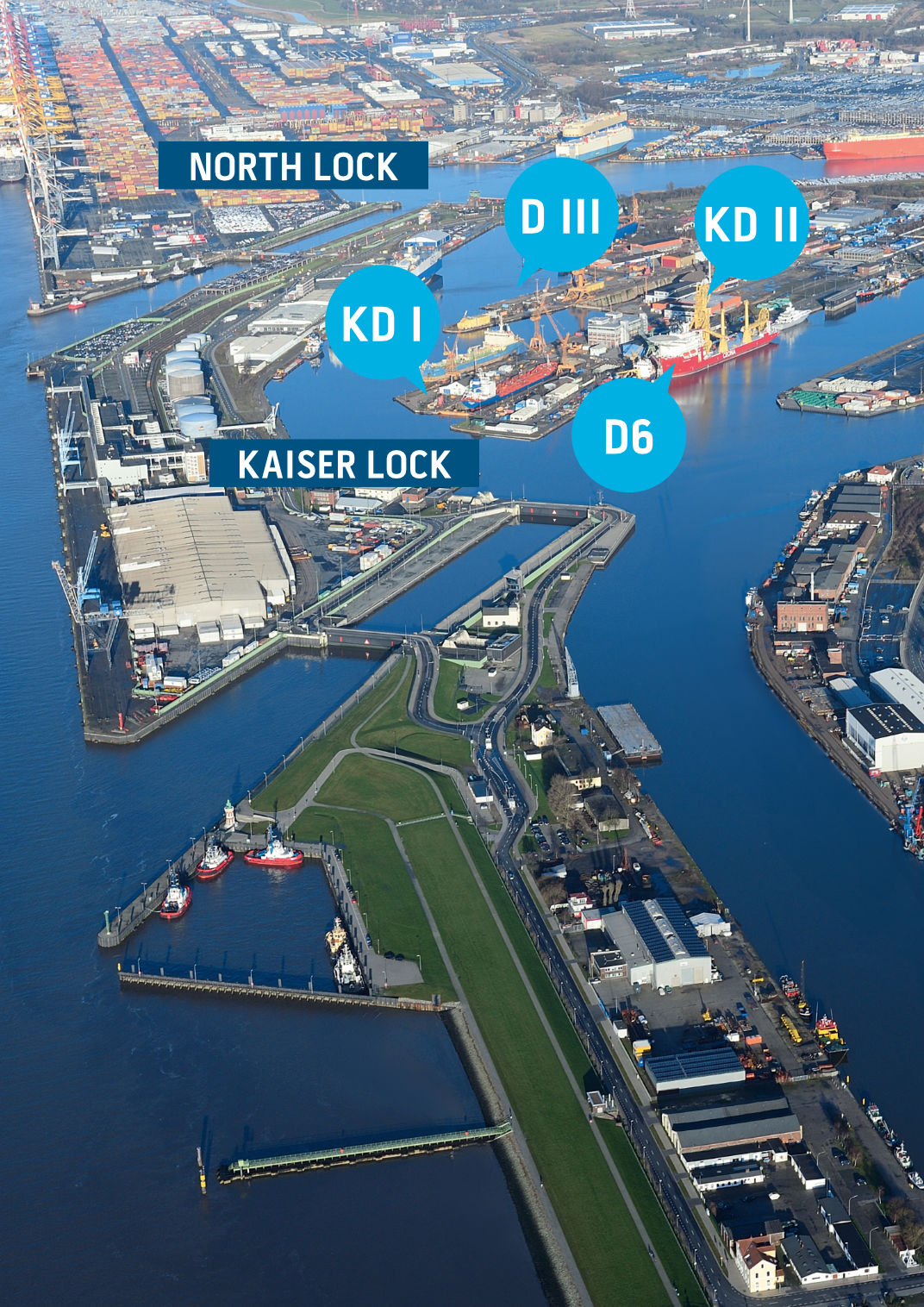

KD I (Lloyd Werft Bremerhaven)

Dry Dock – Kaiserdock 1

Width of lower entrance 26.00 m

Width of upper entrance 32.00 m

Length 222.00 m

Water depth over keel blocks 9.30 m

Gantry crane 35.00 t/13.00 m - 5 t/45.00 m

KD II (Lloyd Werft Bremerhaven)

Dry Dock – Kaiserdock 2

Width of lower entrance 35.00 m

Width of upper entrance 40.00 m

Length 335.00 m

Water depth over keel blocks 11.00 m

Gantry crane 50 t/31.00 m - 20 t/60.00 m

and 35 t/13.00 m - 8 t/45.00 m

D III (Lloyd Werft Bremerhaven)

Floating Dock

Clear Width 38.00 m

Length 281.00 m

Water depth over keel blocks 6.50 m

Gantry crane 60 t/17.6 m - 27 t/37.50 m

15.00 t/21.00 m

10.00 t/14.00 m - 7.50 t/21.70 m

15.00 t/14.00 m - 12.00 t/21.70 m

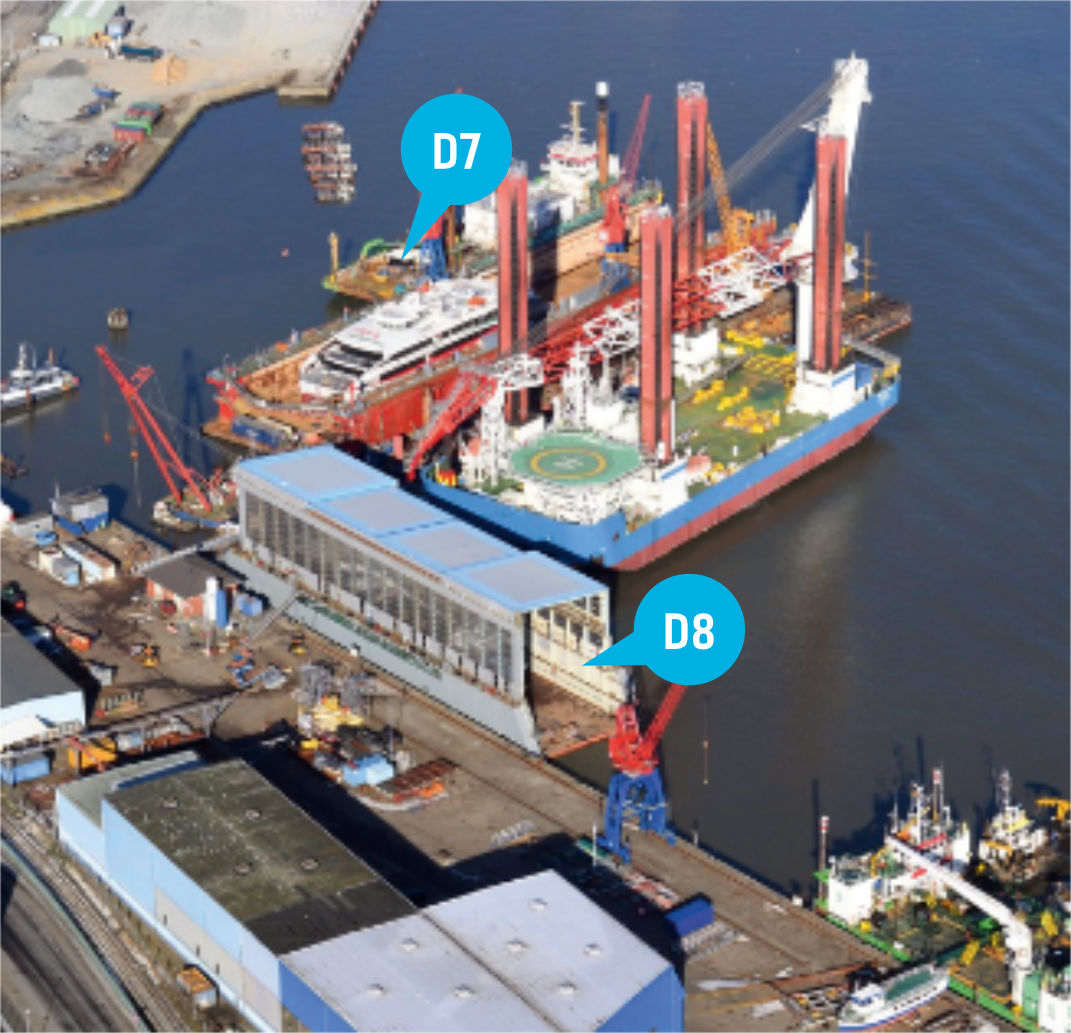

D7

Floating Dock 7 7000 t

Clear width 22.80 m

Length 125.00 m

Water depth over keel blocks 6.00 m

Crane 5.00 t/13.50 m - 3.00 t/21.00 m

D8

Floating Dock 8 1000 t

Clear width 14.90 m

Length 75.00 m

Water depth over keel blocks 4.00 m

Crane 8.00 t/14.00 m - 5.00 t/20.00 m

Roofing 66.50 m x 17.50 m

Jack-Up Berth

Length 170.00 m
